Wired detector
Modle£º
ALN-461
Description:

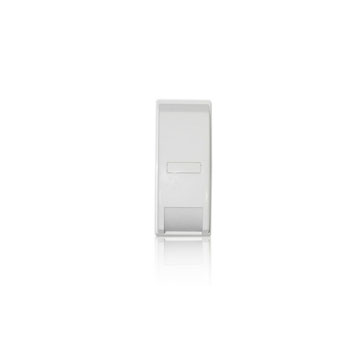

Wired detector
Feature
Technical Parameter
Product Details
1.Detection Mode: Dual Element Passive Infrared Detection Technology
2.Installation Mode:Wall/Ceiling Mounted
3.Operating Voltage:9¡«16VDC
4.Dimension:70mm*28mm*25mm
Model No.
ALN-461
Detection Mode
Dual Element Passive Infrared Technology
Detection Angle
15¡ã
Detection Range
6m*1.3m
Installation Height
2m~3.6m
Installation Mode
Ceiling/Wall Mounted
Power supply
DC9~16V
Current Consumption
¡Ü13mA,12VDC
Working Environment
Temperature: -25¡æ¡«+55¡æ
Humidity:RH 95%
White Light Immunity
¡Ý8000LUX
RFI Protection
20V/m (20MHz¡«1000MHz)
Alarm Output
Dry-Reed Relay;£¨NC£©Contact Capacity: AC/DC 100mA/30V
Tamper Output
(NC)Contact Capacity: AC/DC 50mA/24V
Product Dimension
70*28*25(mm)
