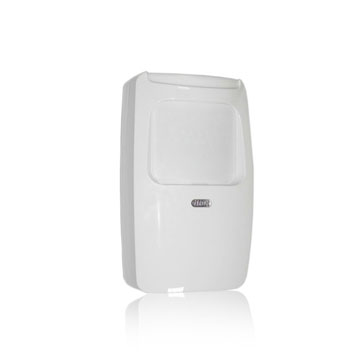

PIR Detector
Modle£º
ALN-7225
Description:
PIR Detector
Feature
Technical Parameter
Product Details
1.Detection Mode:Dual Element Passive Infrared+Microwave Technology
2.Installation Mode:Wall Mounted
3.Operating Voltage:DC9¡«16V
4.Dimension:125mm*75mm*44mm
Model No.
ALN-7225
Detection Mode
Dual Element Passive Infrared+Microwave Technology
Detection Angle
110¡ã
Detection Range
Diameter 11m*12m. 25¡æ
Installation Mode
Ceiling/Wall Mounted
Infrared Area
(22+12+6+4)=44
Micro Frequency
10.525GHz
Power supply
DC9~16V
Current Consumption
8mA~25mA(about 20mA/12VDC)
Working Environment
Temperature: -25¡æ¡«+55¡æ
Humidity:RH 95%
White Light Immunity
¡Ý6500LUX
RFI Protection
20V/m (20MHz¡«1000MHz)
Alarm Output
Solid State Relay;£¨NC£©Contact Capacity: AC/DC 100mA/30V
Tamper Output
(NC)Contact Capacity: AC/DC 50mA/24V
Pet Immunity
18KG
Product Dimension
125*75*44(mm)
