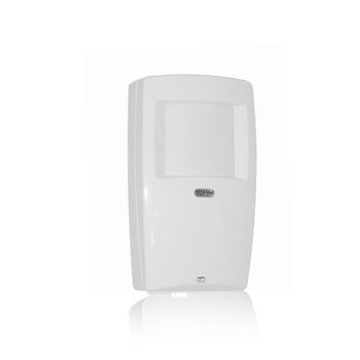

Model No.

ALN-700

Detection Mode

Dual Element Passive Infrared

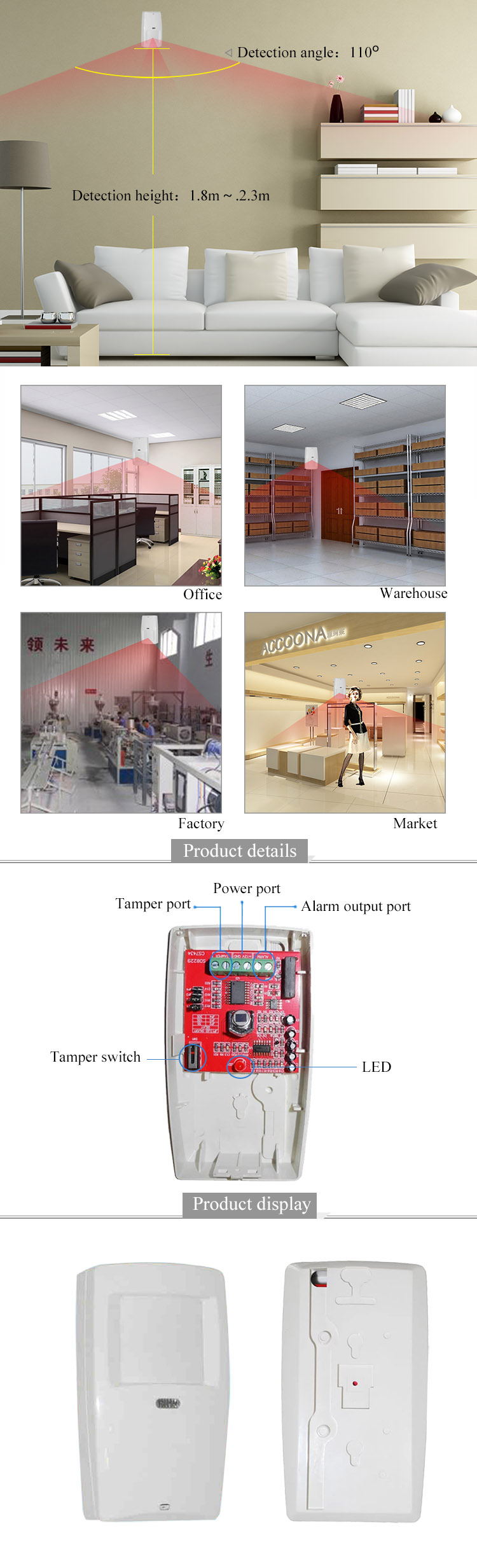

Detection Angle

110°

Detection Range

Diameter 11m*12m. 25℃

Installation Height

1.8m~2.3m

Installation Mode

Ceiling/Wall Mounted

Infrared Area

(22+12+6+4)=44

Power supply

9~16VDC

Current Consumption

8mA~25mA(about 20mA/12VDC)

Working Environment

Temperature: -25℃～+55℃

Humidity:RH 95%

White Light Immunity

≥8000LUX

RFI Protection

20V/m (20MHz～1000MHz)

Alarm Output

Solid State Relay;（NC）Contact Capacity: AC/DC 100mA/30V

Tamper Output

(NC)Contact Capacity: AC/DC 50mA/24V

Product Dimension

119*71*42(mm)
