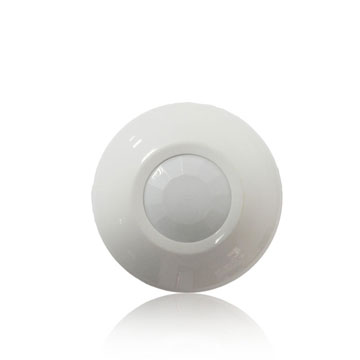

Celling mounted
Modle£º
ALN-106
Description:
Celling mounted
Feature
Technical Parameter

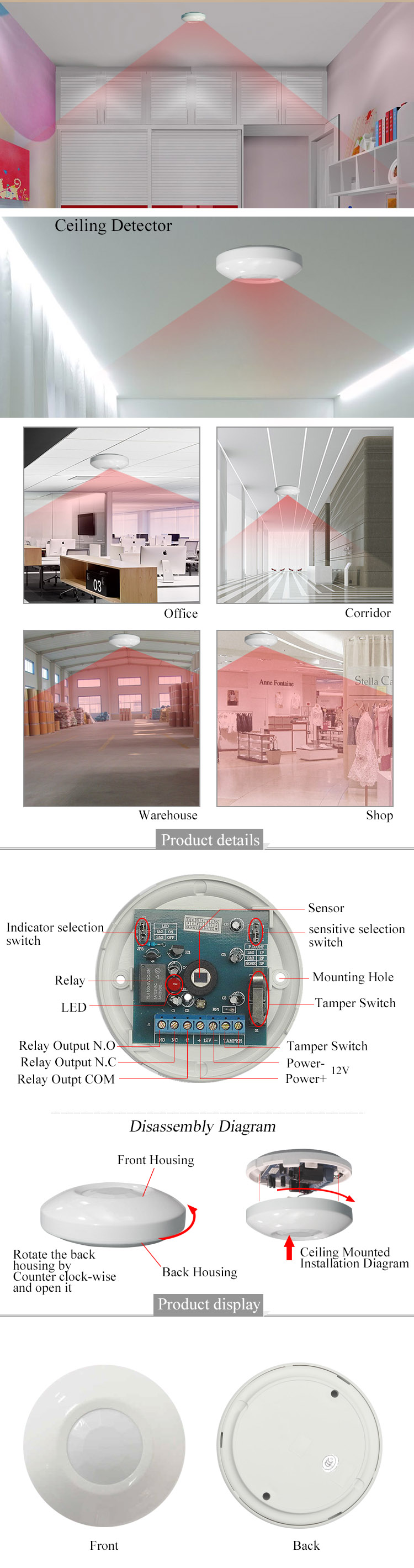

Product Details
1.Detection Mode:Dual low-noisy high-sensitivity pyroelectricity IR sensor
2.Installation ModeWall/Ceiling Mounted
3.Operating Voltage:12¡«16VDC
4.Dimension:¦µ86mm*25mm
Model No.
ALN-106
Detection Mode
Dual Element low-noisy high-sensitivity Technology
Detection Angle
360¡ã
Detection Range
Diameter 7m((When the installation height is 3m)
Installation Height
2.4m~3.6m
Infrared Area
(12+12+12+12+6+1)=55
Installation Mode
Ceiling/Wall Mounted
Power supply
12~16VDC
Current Consumption
¡Ü20mA,12VDC
Working Environment
Temperature: -25¡æ¡«+55¡æ
Humidity:RH 95%
White Light Immunity
¡Ý8000LUX
RFI Protection
20V/m (20MHz¡«1000MHz)
Alarm Output
Miniwatt Electromagnetic Relay(NO/NC)
Contact Capacity: AC/DC 100mA/30V
Tamper Output
(NC)Contact Capacity: AC/DC 500mA/28V
Produce Size
¦µ86*25(mm)
